Direct Output, Performance @ 4ft Section, 3500K
Lines | Infinilite

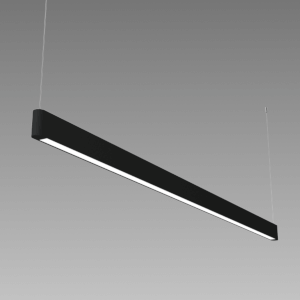

Infinilite features a pleasant, small profile linear body, available in uplight/downlight or downlight-only distributions. Four individual uplight and downlight packages make a wide range of distributions possible.
Lines are available in standard 2ft, 3ft, 4ft, 6ft and 8ft sizes, and are customizable to almost any size between or in long runs.
Lines are available in standard 2ft, 3ft, 4ft, 6ft and 8ft sizes, and are customizable to almost any size between or in long runs.
- 1-1/4" Wide x 2-1/2" Tall Profile
- 6061 Aluminum Extrusion
- Precision Milled Aluminum Connectors
- From 3.75 to 7.75 Watts per Foot, Depending on Output
- 90CRI LED, Outputs Between 400 & 700 Lumens per Foot
- Lambertian Direct Lensing, Batwing Indirect Lensing
- Integral Drivers, 0-10V Dimming to 1%
LD
| LD400 | 400 Lumens per Foot | Approx. 3.75 Watts per Foot |
| LD500 | 500 Lumens per Foot | Approx. 4.75 Watts per Foot |
| LD600 | 600 Lumens per Foot | Approx. 6.00 Watts per Foot |
| LD700 | 700 Lumens per Foot | Approx. 7.75 Watts per Foot |
LI
Indirect Output, Performance @ 4ft Section, 3500K
| LI400 | 400 Lumens per Foot | Approx. 3.75 Watts per Foot |
| LI500 | 500 Lumens per Foot | Approx. 4.75 Watts per Foot |
| LI600 | 600 Lumens per Foot | Approx. 6.00 Watts per Foot |
| LI700 | 700 Lumens per Foot | Approx. 7.75 Watts per Foot |
Construction
The housing is comprised of an outer body, and three interchangeable inner components. All housing components are 6063 T5 extruded aluminum.
The connectors are machined from 6061 aluminum.
At each joint, precise cuts, tight tolerances and our ‘Latch & Lock’ draw-tight latch system ensure a tight, aligned fit without gaps or light leaks.
Electrical
State-of-the-art pixel-free LED, 90CRI, available from 2700K to 4000K. L70 lumen maintenance > 72,000 hours.
Integral drivers are 0-10V Dimming to 1%, 50-60Hz, 120-277V, Power Factor > 0.95, Max THD < 20%.
Internal color-coded disconnects at each joint for ease of installation & servicing.
Fixtures are provided with (1) or more power feeds, comprised of 18-5 power cord, a 5” canopy and a crossbar for mounting to a 4” octagonal junction box.
Lensing / Optics
Direct lighting uses a high-efficiency satin lens with excellent uniformity.
Indirect lighting uses a secondary batwing optic.
Finishes
All fixture components are finished in a premium polyester powder coat. A wide range of colors and textures are available.
For maximum efficiency, all internal light-affecting components use high reflective white powder coat.
Mounting
Pendant-mounted using 1/32” aircraft cable, 120" cable length.
Camman provides the following hardware:
-
Hard ceiling: A standoff for attachment to a 1/4-20 stud.
-
Grid (suspended ceiling): A 2 inch canopy and a coupler for attachment to a 1/4-20 stud.
Other mounting hardware (studs, caddy clips, etc.) not provided. If necessary, or for special mounting requirements, contact the factory.
Maximum weight per 1ft section: 1.2 pounds.
Warranty
5 years (electrical components retain the component manufacturer warranty).
